A'PEXi - N1 Evo Extreme (Catback) - Toyota GR86 / Subaru BRZ 2022+

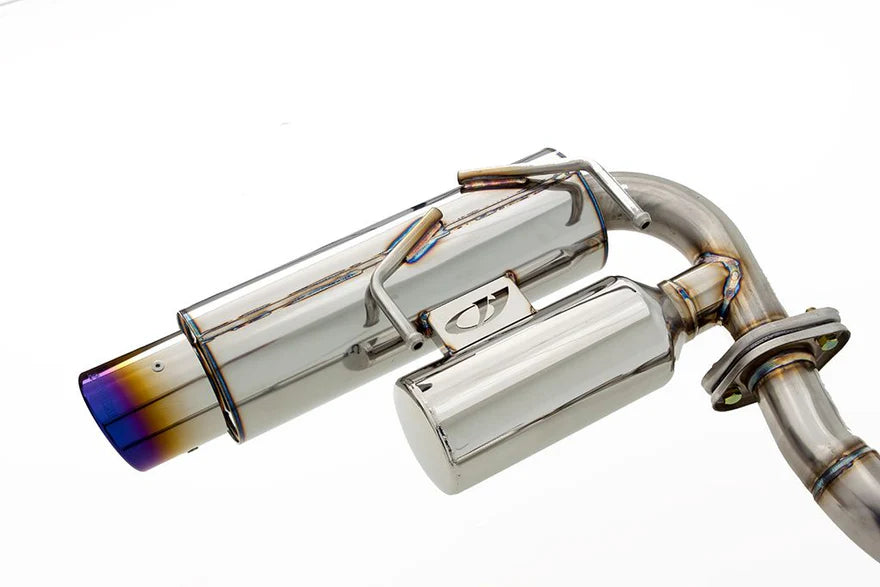

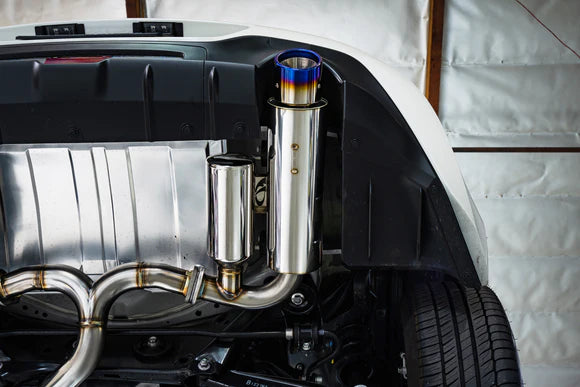

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.

PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results

Bolt-On	Yes
Part Number	164-T008J
Year	2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
Make	Toyota, Scion, Subaru
Model	FRS, 86, GR86, BRZ
Body Style	2-Door Coupe
Engine	- 2.4 L FA24D H4 - 2.0L FA20 H4
Chassis	ZN6, ZC6, ZN8, ZD8

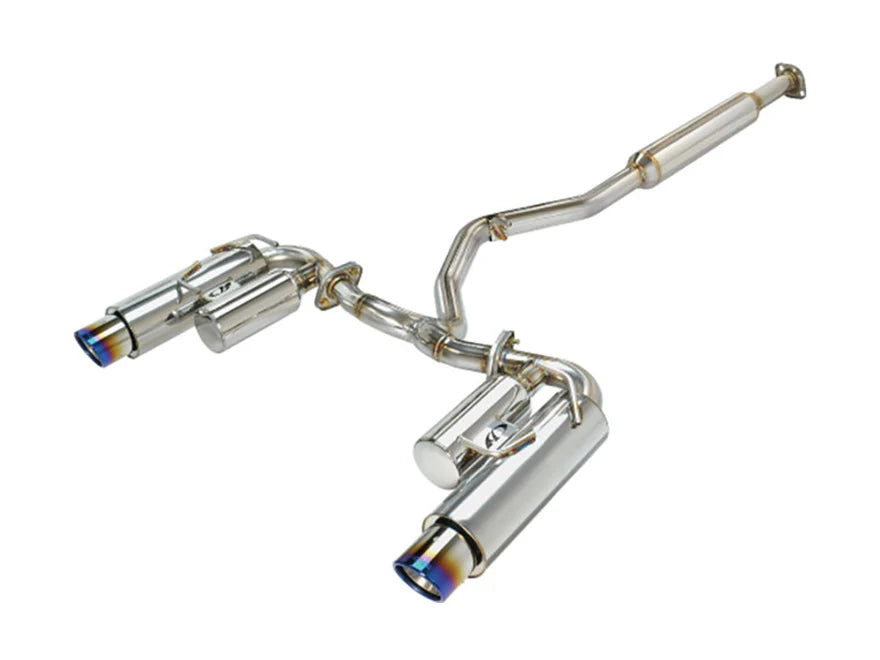

Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	60mm. to 54mm. x 2
Tip Diameter	93mm. x 2
Pieces	3

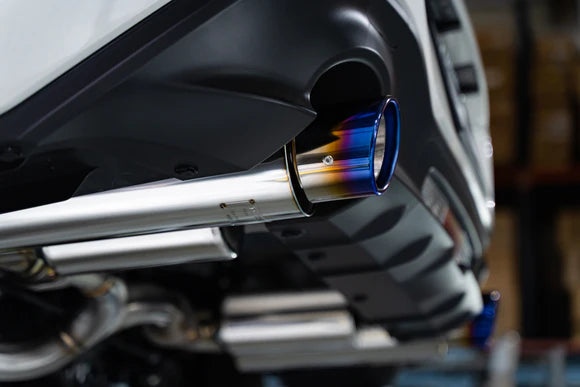

Exhaust Tip Style	Titanium Round- Dual wall rolled, Angle cut (Riveted)
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	TP270 Titanium
System Weight	31.00 lbs.
Special Notes	Package Dimension: 84"x12"x20", Package Weight: 47 lbs.
