AEM E85 High Flow In Tank Fuel Pump (65mm, Offset Inlet)
50-1220
The AEM 320lph E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation.
The 320lph E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter and O-rings. Every AEM 320lph E85-Compatible Fuel Pump is tested to flow 320 lph at 43 PSI before it is packaged for sale.
- Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In tank design
- Each pump is tested to flow 320 lph @ 43 PSI

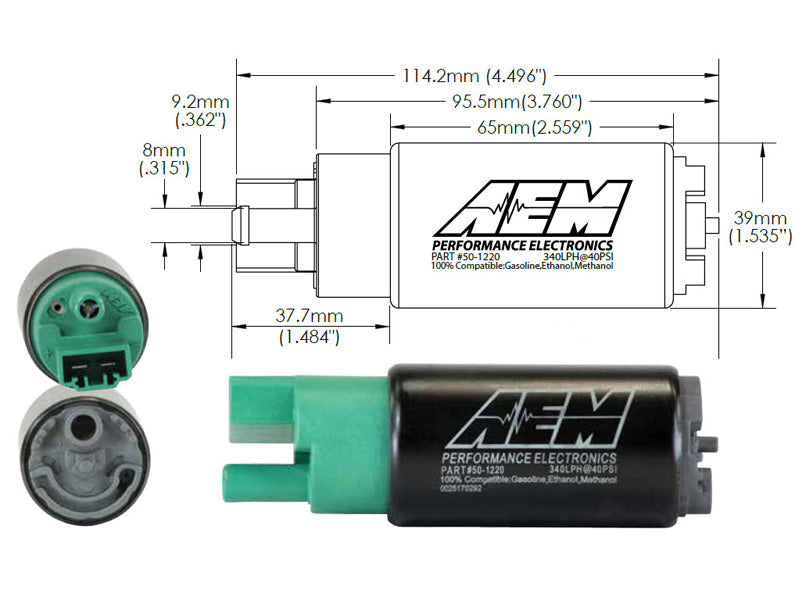

- Compact body (39mm diameter x 65mm length)
- Includes pre filter, hose, clamps, flying lead, end cap and rubber buffer sleeve
TECHNICAL SPECS:
Weight: 10.4oz (294grams)
Outside Diameter: 39mm OD
Length: 65mm
External Materials: Black plated steel with laser etching, green/gray end caps
Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
Outlet Fitting: 8 mm hose clamp. Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS:
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX
